In Stock Drill Bushings
Visit individual sections for P/PM, H/HM, SG/DG, SF, and Liners with full sizing charts, CAD models, application guides, and tolerance details tailored to your tooling needs.

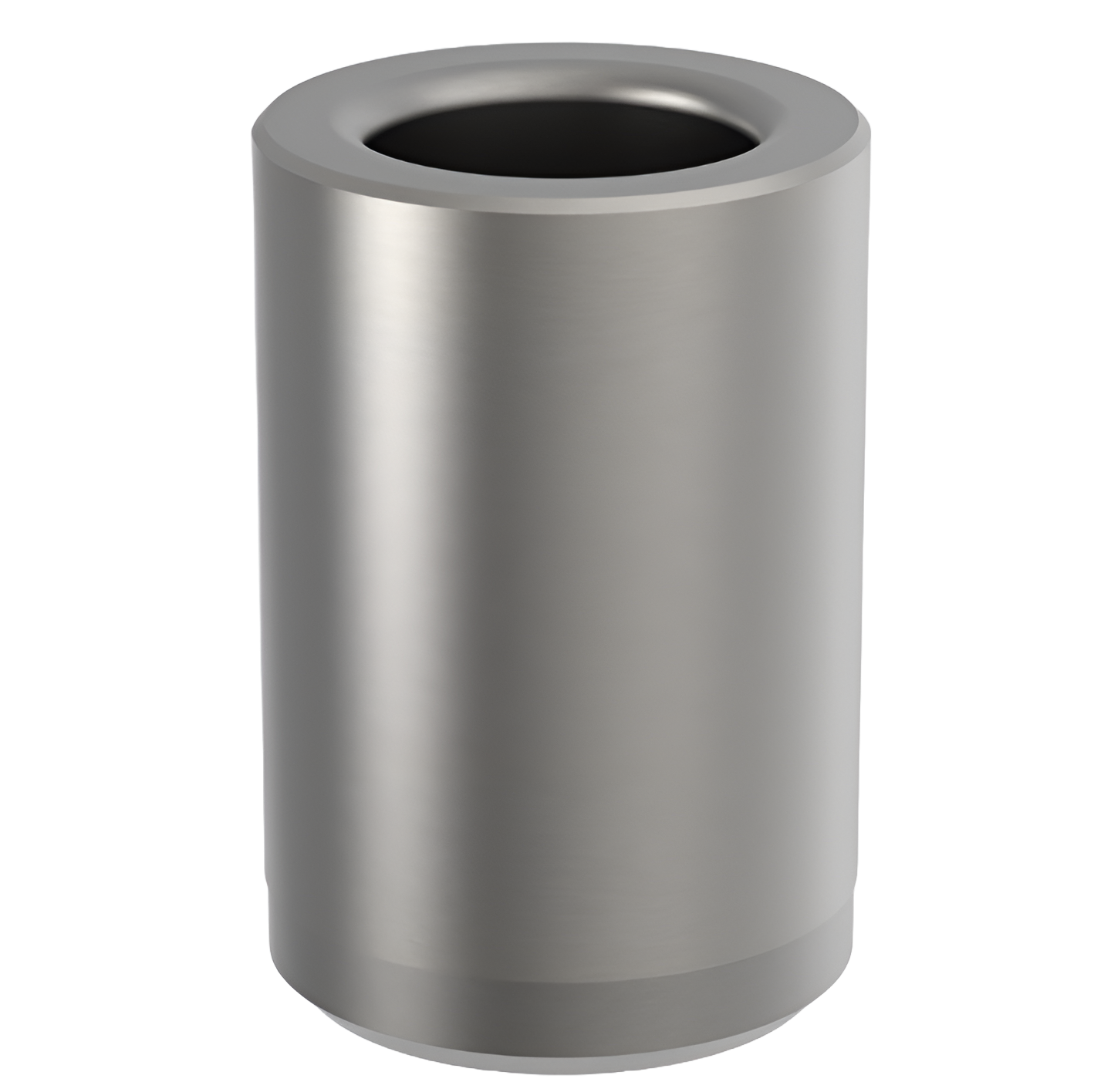

Press-Fit Inch (P)
Permanent flush press-fit bushings. Most economical for single drilling operations. No head exposure. IDs #80 to 1
More Information

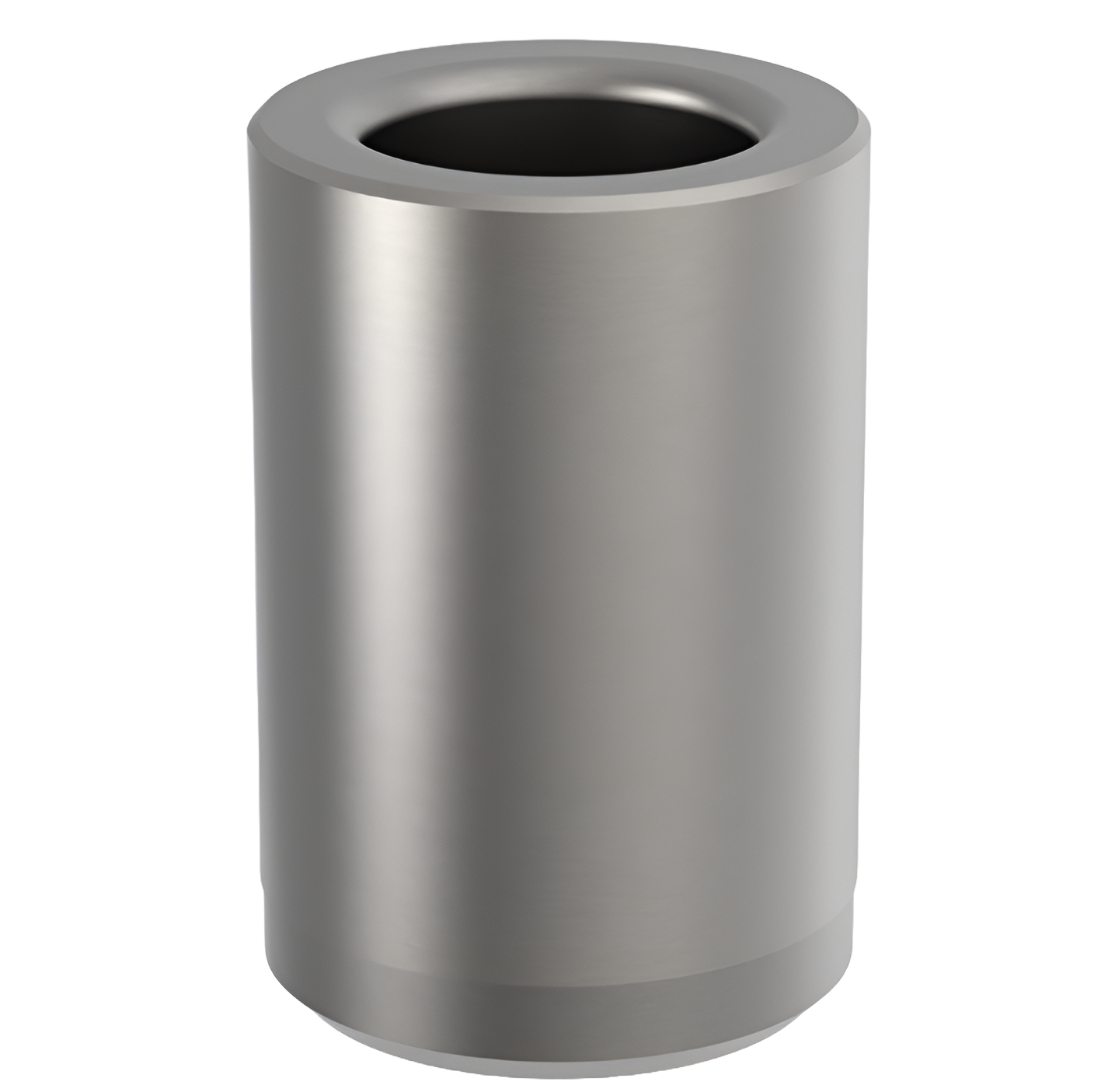

Press-Fit Metric (PM)
Metric P equivalent for international tooling. 3-25mm common sizes. s6 OD tolerance, flush mount
More Information

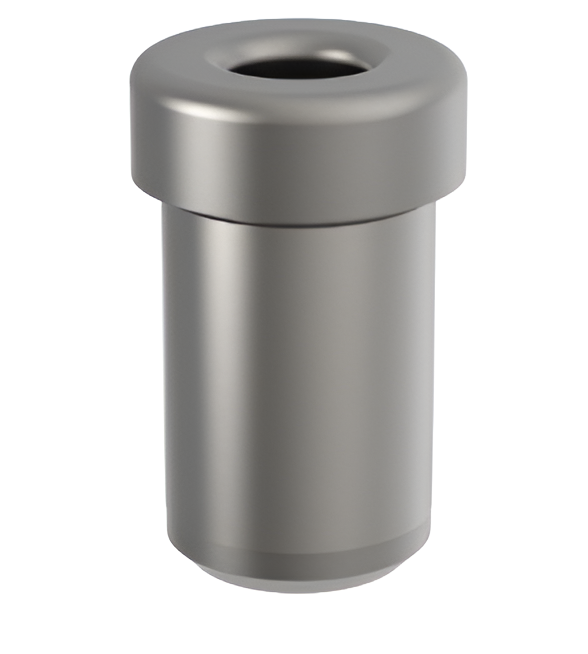

Head Press-Fit Inch (H)
Protruding head resists axial pull-out. Heavy-duty drilling/reaming. Counterbore specified in part #
More Information

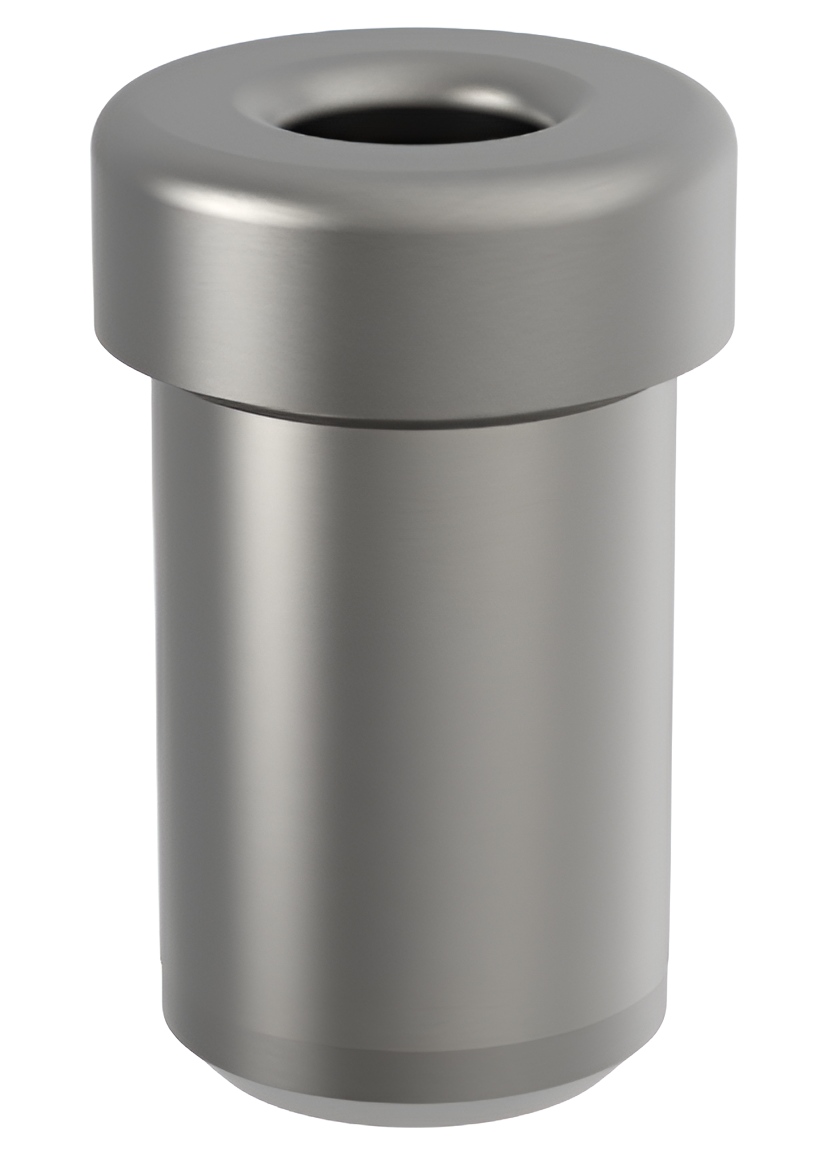

Head Press-Fit Metric (HM)
Metric headed press-fit. 4-25mm range with G6 ID tolerances.
Rc 62-64 hardened steel
More Information

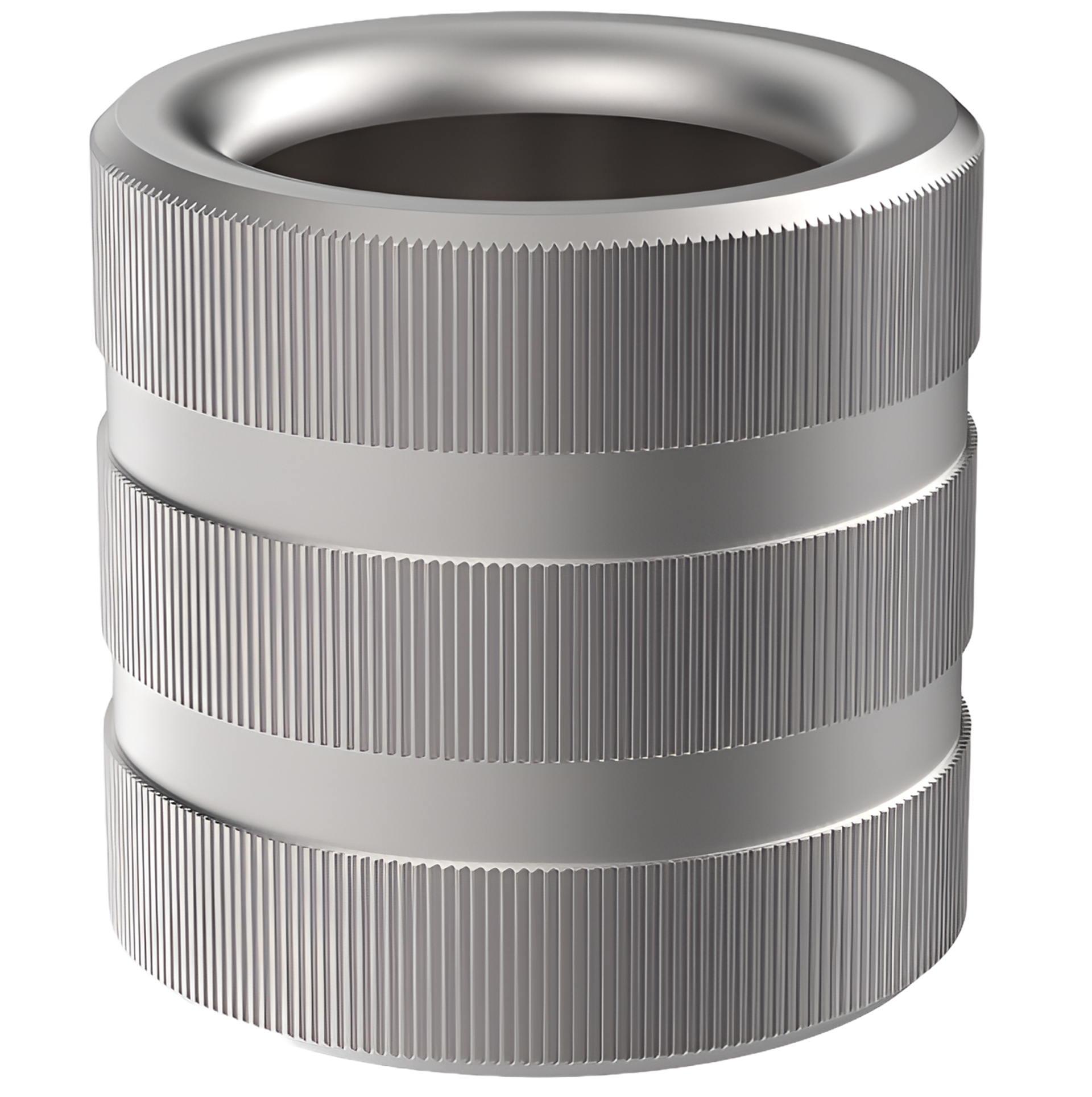

Serrata-Groove Inch (SG)
Serrated grooves maximize grip in soft materials. Anti-rotation for aluminum, plastic, wood jigs & fixtures.
More Information

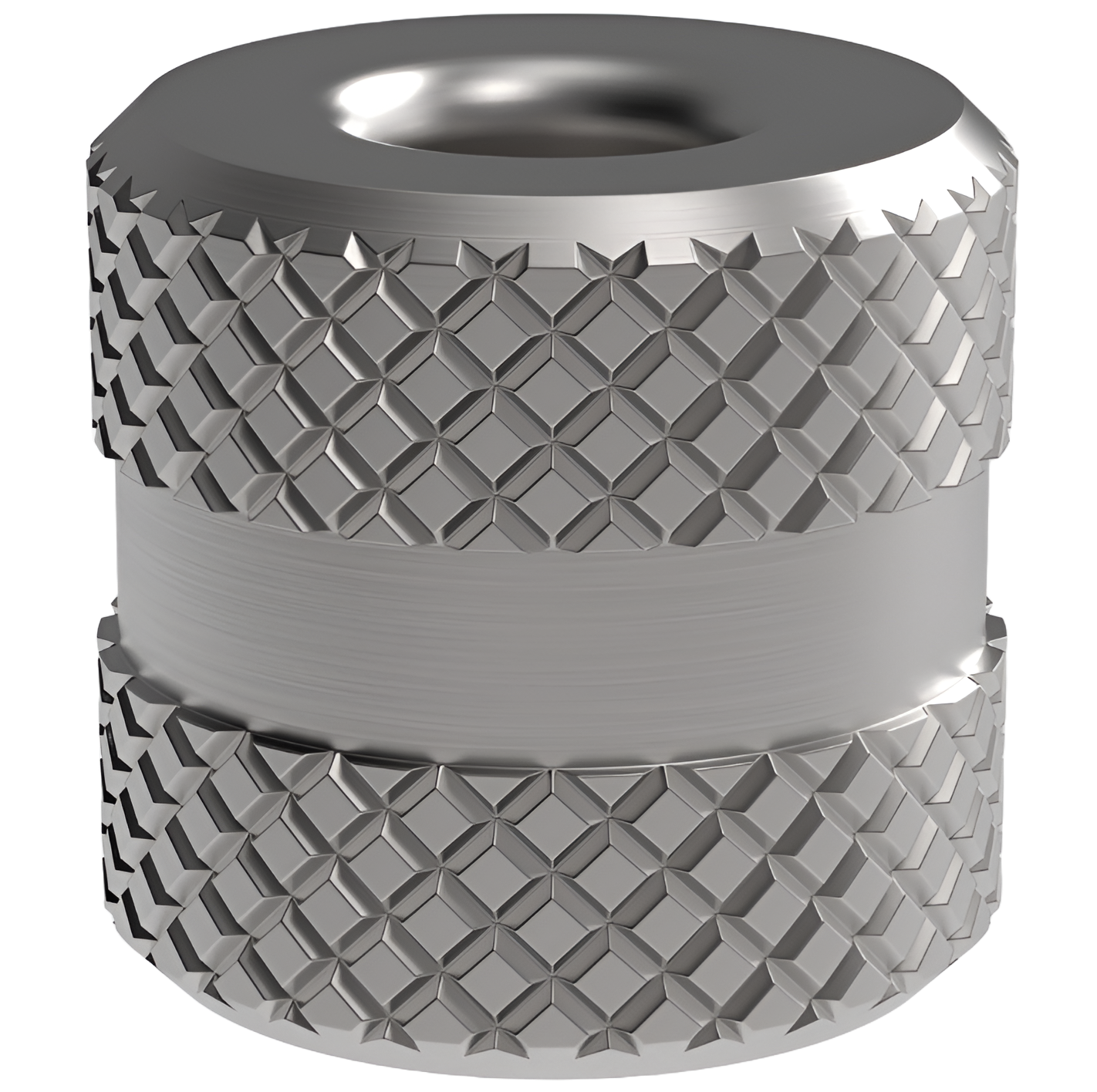

Diamond-Groove (DG)
Diamond-pattern grooves for extreme torque retention. Production drilling stability, prevents walkout.
More Information

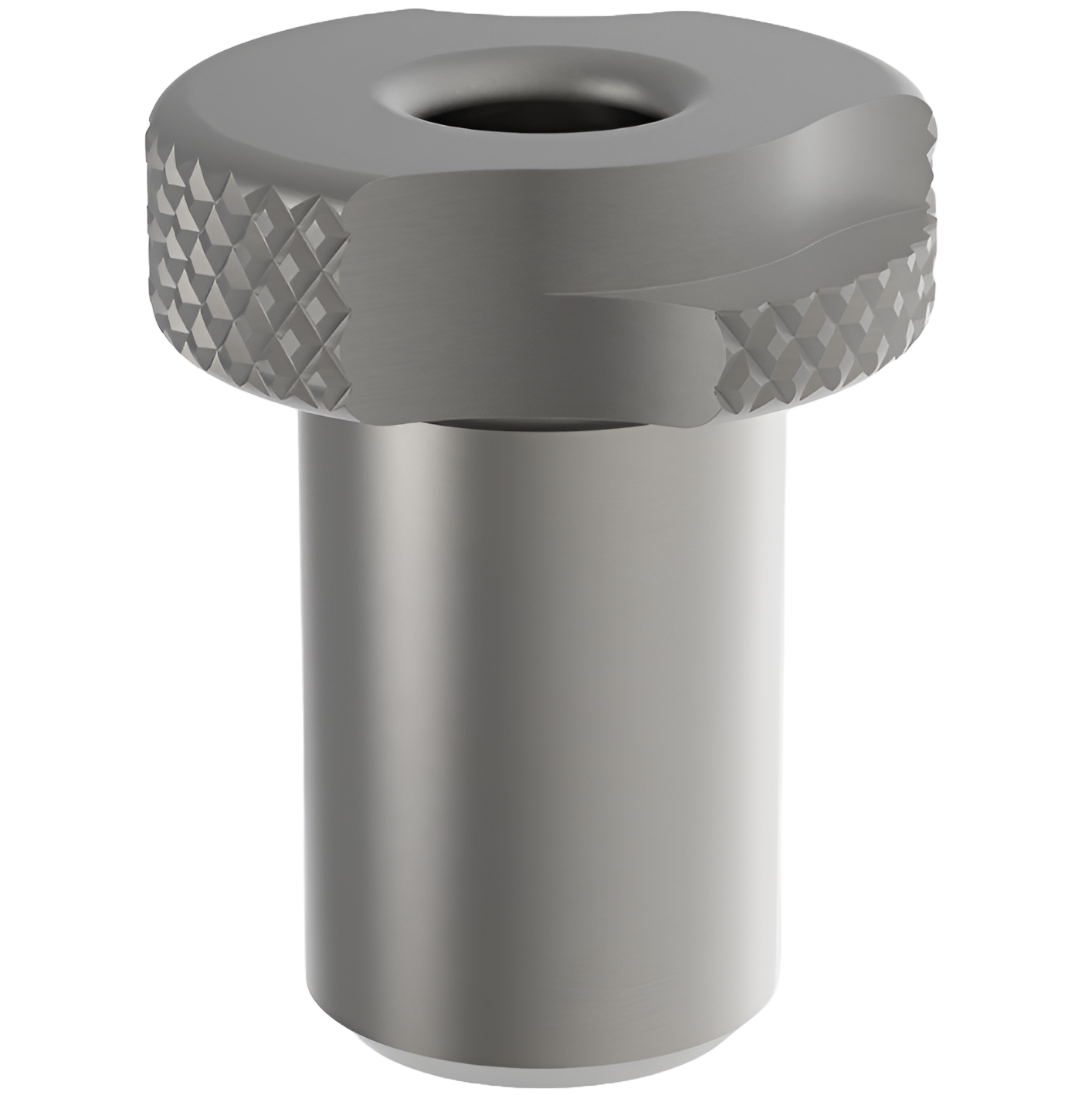

Slip/Fixed Renewables (SF)
Dual-function: slip side replaceable, fixed side lockscrew-secured. Perfect for multi-operation tooling
More Information
Press-Fit Headed (PC)
Headed press-fit for specialized retention. Additional security for specific high-load applications
More Information

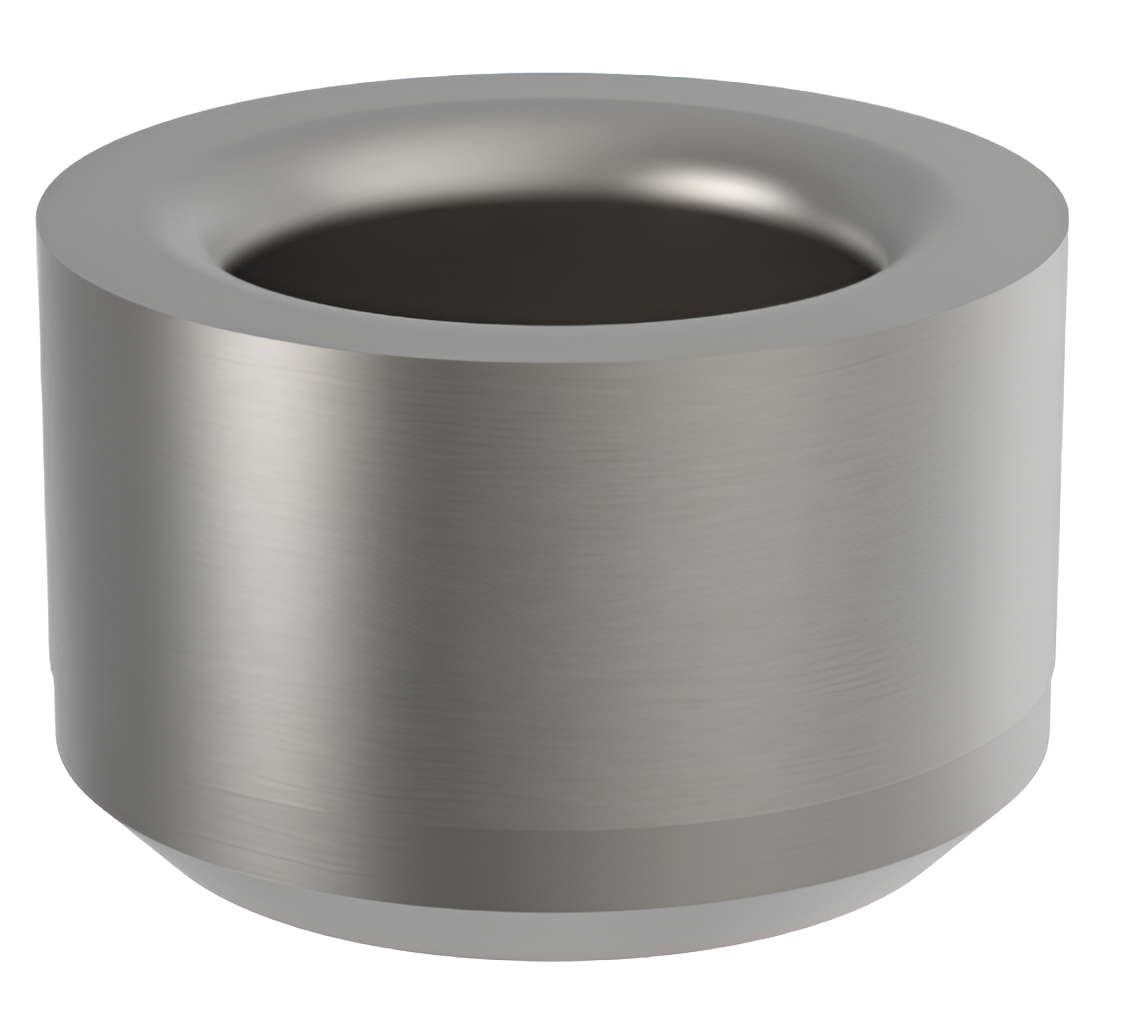

Liner Bushings (L)
Standard permanent liners. Precision guides for renewable SF bushings in high-volume production fixtures
More Information

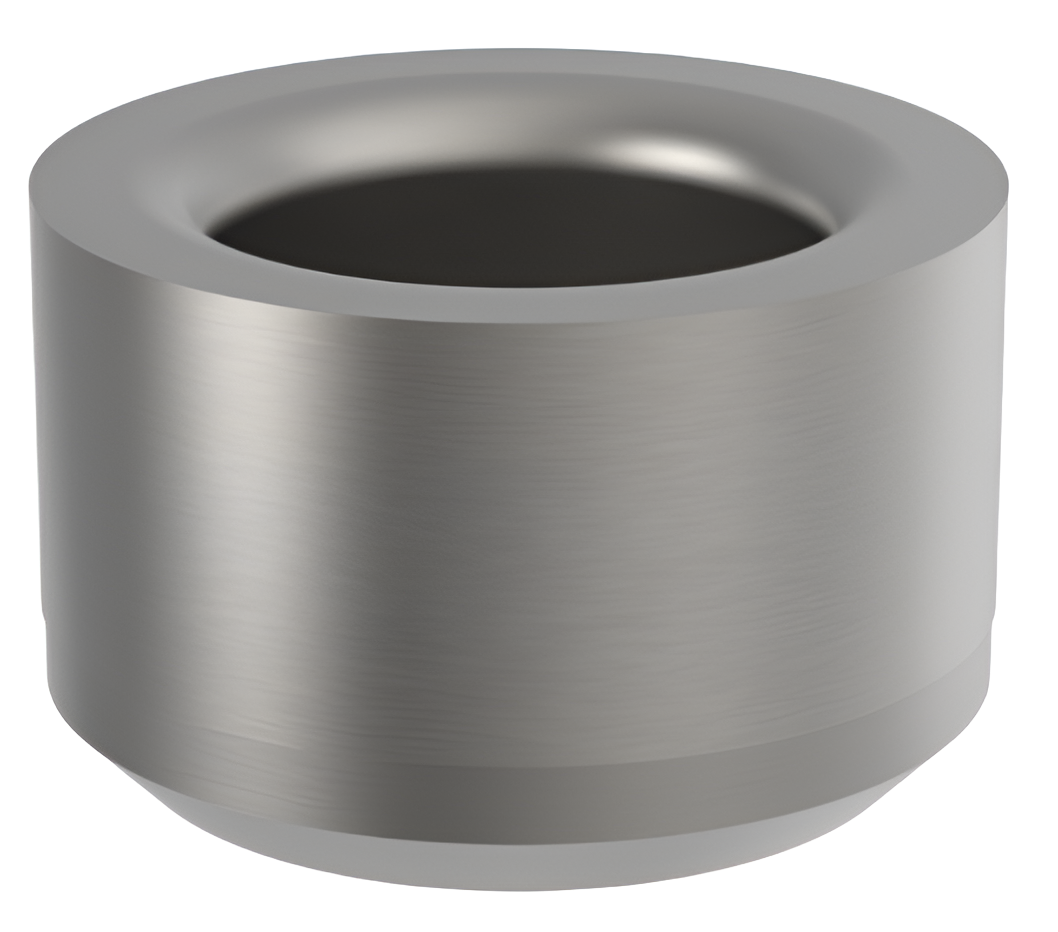

Liner Metric (PM)
Metric permanent liner bushings. Guide metric SF renewables with global fixture compatibility for precision machining worldwide
More Information

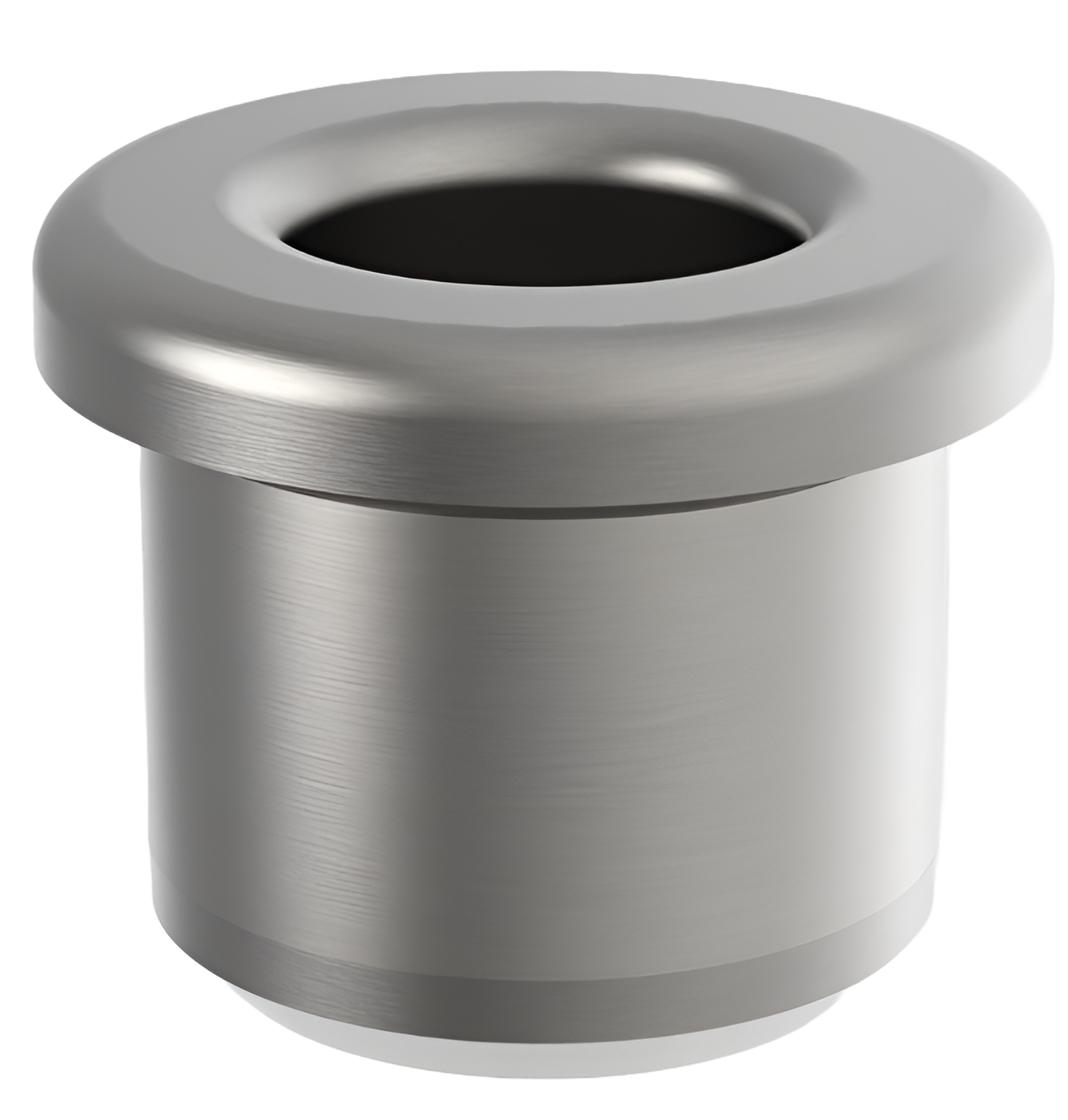

Head Liner (HL)
Headed liner for axial load resistance. Enhanced retention in complex renewable systems. Ideal for heavy-duty production tooling.
More Information

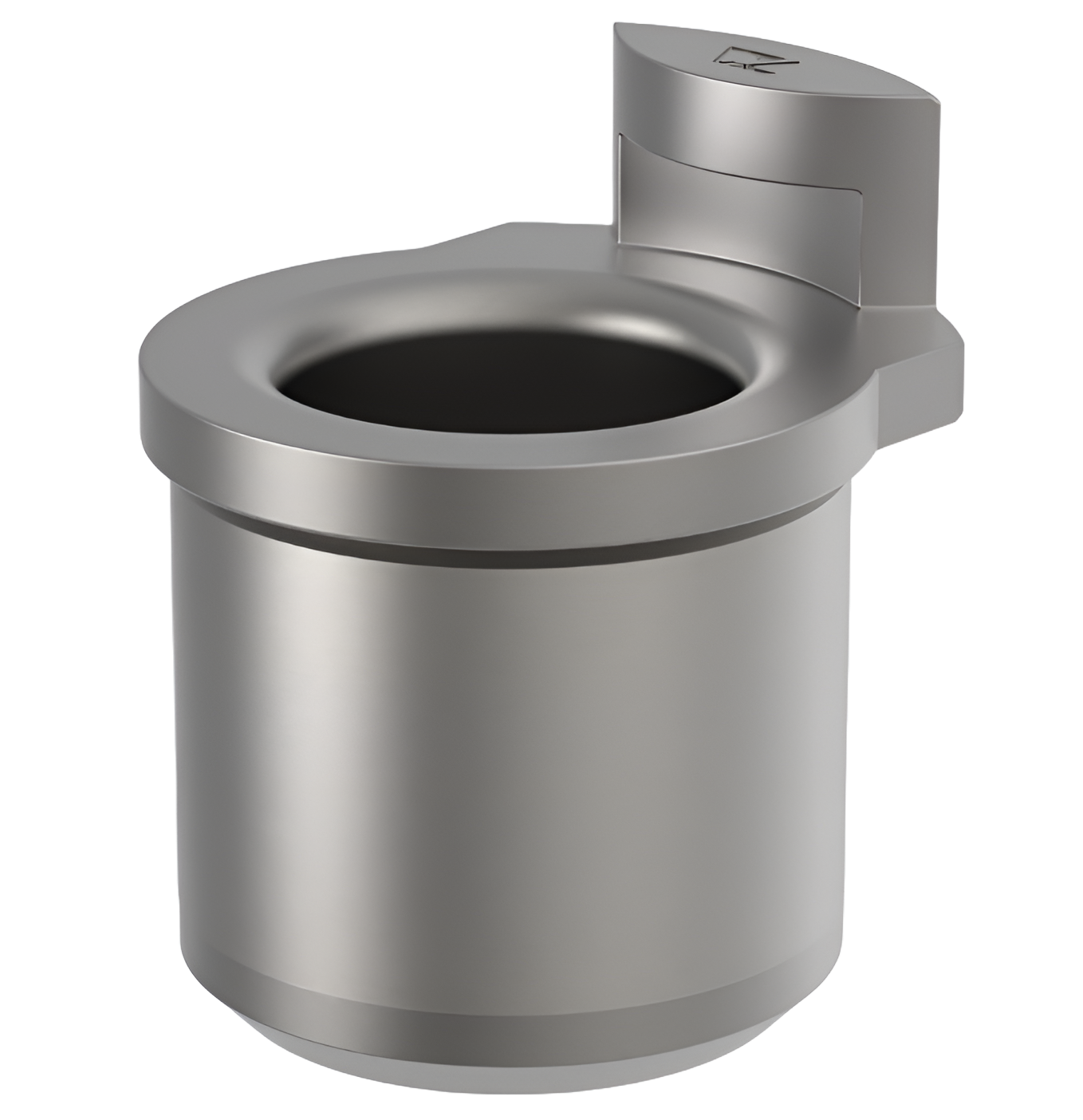

Un-A-Lok Liners (UL)
Self-aligning locking liner system. Ultimate precision for cast-in-place or modular production fixtures.
More Information
